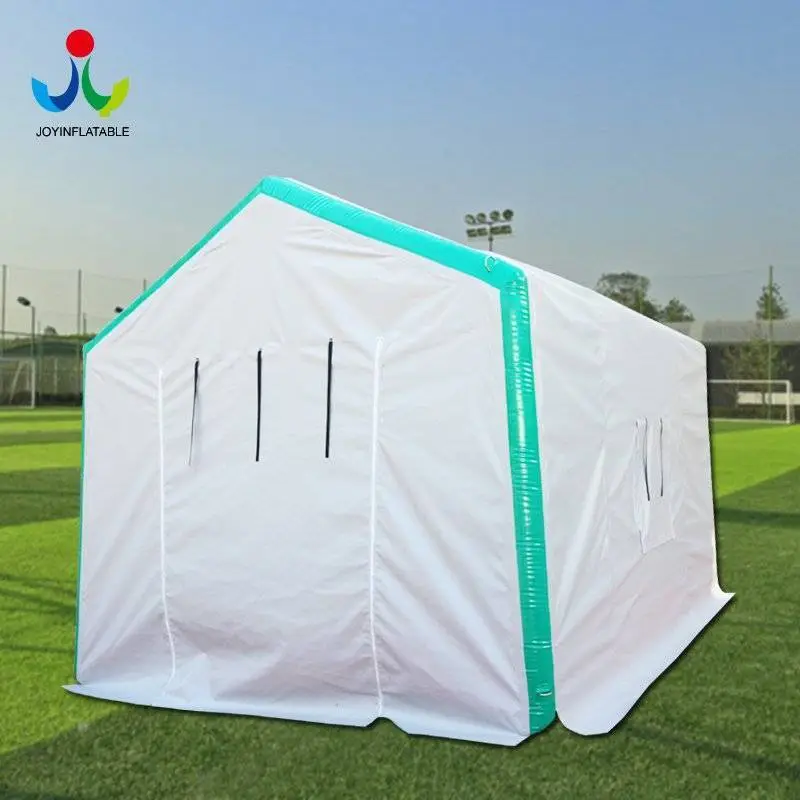

Used Inflatable Tents For Sale

This inflatable cueb tent is using the principle of structural mechanics design framework, the use of gas pressure characteristics of the balloon expansion to form a certain rigid cylinder, through the organic combination of the tent to hold up the skeleton.

 The size of the tent is 4.5M length 3.5m width and 2.8m hieght . The framework is made by airtight tube with 0.6mm pvc and outside cover the 0.4mm pvc materials .

 Mainly used for moisture, water, wind, dust, sunscreen, disaster relief, field short-term training, Wedding Party Event ,exhibition .

All kinds outside activities.
 1.For medical event.  2. emergency .   3.military



Technology

Sewing :Welder by Miller machine in high steam and reinforcement at joint part

Feature : Only onece inflate by the air pump



easy to install

You can install or disassemble in a very short time to save you valuable time; better insulation, inflatable tents with high quality pvc waterproof canvas, tear resistance, better tensile strength, anti-aging Better sex, long service life. In the weight and 6 wind load under the safe use of continuous service life of more than 2 years.



Smaller and lighter

Therefore, compared to ordinary metal bracket tent, the inflatable tent has its unmatched advantages, its light weight, small size, in the transport with ordinary metal bracket tent does not have the advantage. And its erection and removal are very simple, will not waste more manpower and time, especially for emergency response in the emergency use. In the harsh environment can not be reached when the inflatable tent can also be empty.

Air tight technology: Welder by Miller machine in high steam and reinforcement at joint part .

Features:100% waterproof ;only once inflate ,airtight

How to Used Inflatable Tents  ?

1.Base fabric is laid on the ground and put the inflatable tent on the base fabric and then to inflate the inflatable tent . During the inflation process, the two inflation valves must be inflated at the same time to ensure the simultaneous expansion of each part, and the air columns are not allowed to be knotted. If there is a lack of airflow in the air column, you can use your hand to gently tap a few times. When the air column is raised, several people can help it stretch, and lift the inflatable tent up, prompting the air column to stand up quickly.
2. For the first time of inflating, the air pressure is not allowed to exceed 13.3kpa. After the gas column is fully expanded after 5 mins, the air pressure is raised, but the maximum pressure is not allowed to exceed 20kpa. The inflation pressure can be appropriately increased or decreaed according to the ambient temperature. .

1. Check the leak point:
First, clean up the gas column and apply the surface with soapy water to check the leak point.
Second, find a quiet place (evening), full of gas, and then listen to a quiet circle around the inflatable tent, you will hear the sound of air leaks, and then find the root cause.
2, repair the leak point:
Need to use tools: pvc materials, glue provided by us. If the leak point is a small hole, you can use a small piece of pvc materials (there is a standard in the inflatable tent of any size), then brush the glue, and stick it to the leak after the glue is dry. The bonding is strict. If the leak is the opening of the air column heat sealing joint parts, it can be processed in the following steps:
First, clean the bonding surface first.
Second, the repair kit we will send with the tent together,and the repair kit with have a  glue, brush it on the pre-adhesive surface, must be evenly painted, the thickness is appropriate, after brushing twice, you can bond.
Third, the shape of the adhesive interface must be designed to be circular or elliptical, try to avoid the shape of the square and acute angle interface, the overlap width should not be less than 30mm.
4. After the glue has evaporated, the bonding can be carried out. The patch must be flat, without wrinkles,roller pressure, scraping, and at the same time using a hair dryer to provide a heat source, easy to stick after 6 hours of bonding, it can be inflated. (Note: When repair the leak point the glue must be dried before bonding, the time is about 10-20 minutes)

1、free design

2、free repair kit and the After- sale Service

<
