Giant Airtight Connectable Emergency Medical Inflatable Shelter Tent for First Aid

Inflatable medical tents are hitting the emergency, medical sector and the military . Our Inflatable medical tents are hitting the emergency, medical sector and the military . But this part just inflatable frame for the medical tents, our customer will make the materials to cover the inflatable frame by themselves to make up a tent .

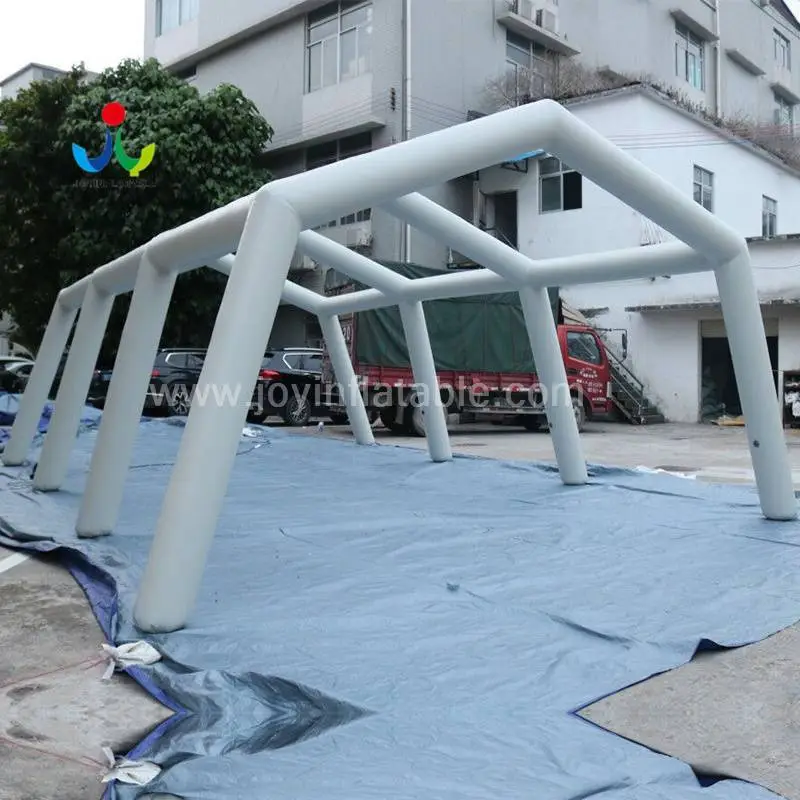

This is the inflatable frame for the military medical tent . We just make the inflatable frame for our customer and the customer will make the cover(top and side sheet) and the floor attach to the  to hide columns . The last structure will be like the below picture .

All kinds outside activities.  1.For medical event.  2. emergency .   3.military



900g/sqm pvc tarpaulin

Our pvc tarpaulin 100% high tenacity polyester yarns with 900g/sqm PVC coating with Laminated technology & Hot-melt Coating technology;It is good strength, good flexibility, and adhesion strength and Outstanding tearing strength for welding;



Waterproof

500g/sqm PVC tarpaulin on the top is waterproof and the airtight inflatables are made with high temperature multifunctional welding machine, which is necessary and efficient for massive waterproof airtight inflatables



Overpressure safety value

We install the overpressure safety valve on each column.

heat welding machine : High precision heat welding machine and elaborated welding work for the water park  .we can perfectly seal all the material pieces together into any reasonable inflatables, and heat weld all of our airtight inflatables with top quality standard with high efficiency

handles, anchor rings are welded

VS

handles, anchor rings stick with glue

pressure; Air relief valve; Intake valve

VS

only with intake valve when Sharp differences in temperature the product will be easy to burst

1.To find  space , long , wide and high enough to place the tent on the ground .
2.Clean up the site, not allow have sharp objects and high-voltage wires to keep safety .
3.It would be much better if put a cushion under it such as carpets, plastic color cloth protect the tent from sundries .
4.Spread out and flatten the tent on the ground .
5.Connect the air inlet of inflatable tent and the outlet of blower tightly, and then tight alternative air inlet with a rope.
6.When the blower switched on, inflatable tent will be inflated within 10-30 minutes (depend the size of the tent ).
7.If there is a wind, fill the sandbag and tie it to D-rings on the bottom of the tent or tie the Stakes to D-rings on the bottom and insert the stakes in the soil .

If you find a leak, you can wipe the air column first, then apply the surface with soapy water to check the leak. Leakage point If it is a small hole, you can use a small piece of circular maintenance cloth (any specifications of the inflatable tents inside the standard), and then brush dispensing, to be dry after the paste on the leak.
If the leak at the gas column heat seal at the opening of plastic, can be divided into the following steps:
1. First clean up the bonding surface.
2. Guangzhou Joy Inflatable Limited of the inflatable tents will be issued to the bottle of glue, inflatable tent column dedicated plastic, it will be painted on the pre-adhesive surface, must be painted evenly, the thickness of the appropriate brush map twice, you can Sticked up.
3. The shape of the mouth to be designed into a circular or oval, try to avoid the square and acute angle interface shape, lap width can not be less than 30mm.
4. To be glue after evaporation, can be bonded, patch to be flat, no wrinkles, rolling, scraping, while the supply of heat with the hair dryer, easy to bond. Adhesive after 6 hours can be inflated.

1、free to desige fee.
2、free repair material and repair video.
